鏈板規格 |
單軌 |
雙軌 |
三軌 |
四軌 |
|||||||||||
|
R |
W |
H |
R |
W |
H |
T |
R |
W |
H |
T |
R |
W |
H |
T |
|
|

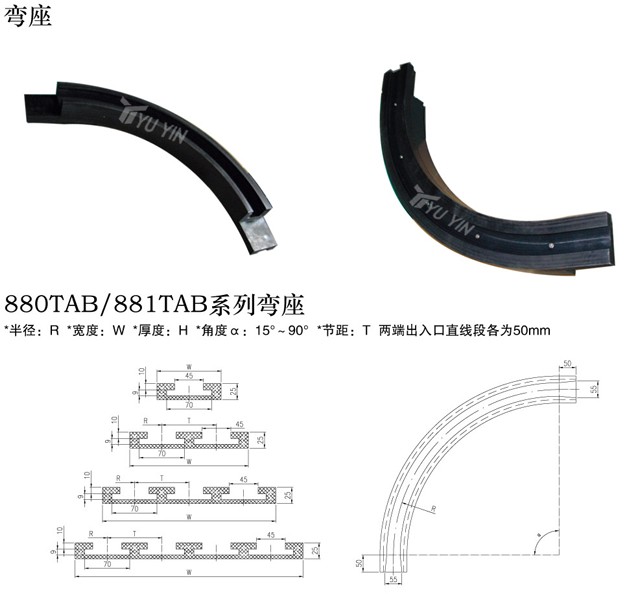

880TAB/881TAB -K325 |
500 |
100 |
25 |
500 |
185 |
25 |
85 |
500 |
270 |
25 |
85 |
500 |
355 |
25 |
85 |
|
880TAB/881TAB -K450 |
610 |
130 |
25 |
610 |
250 |
25 |
120 |
610 |
370 |
25 |
120 |
610 |
490 |
25 |
120 |
|
881TAB -K600 |
610 |
160 |
25 |
610 |
320 |
25 |
160 |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
|
881TAB -K750 |
610 |
200 |
25 |
610 |
400 |
25 |
200 |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
|
鏈板規格 |
單軌 |
雙軌 |
三軌 |
四軌 |
|||||||||||
|
R |
W |
H |
R |
W |
H |
T |
R |
W |
H |
T |
R |
W |
H |
T |
|
|

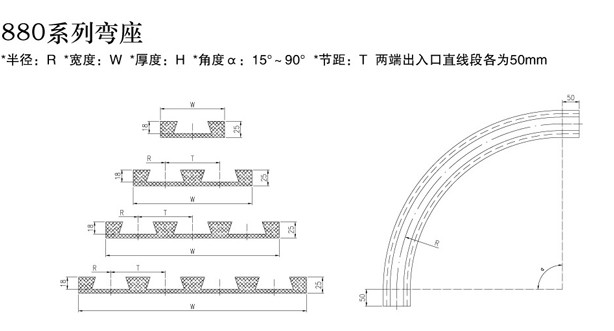

880 -K325 |
500 |
100 |
25 |
500 |
185 |
25 |
85 |
500 |
270 |
25 |
85 |
500 |
355 |
25 |
85 |
|
880 -K450 |
610 |
130 |
25 |
610 |
250 |
25 |
120 |
610 |
370 |
25 |
120 |
610 |
490 |
25 |
120 |
|
鏈板規格 |
單軌 |
雙軌 |
三軌 |
四軌 |
|||||||||||
|
R |
W |
H |
R |
W |
H |
T |
R |
W |
H |
T |
R |
W |
H |
T |
|
|

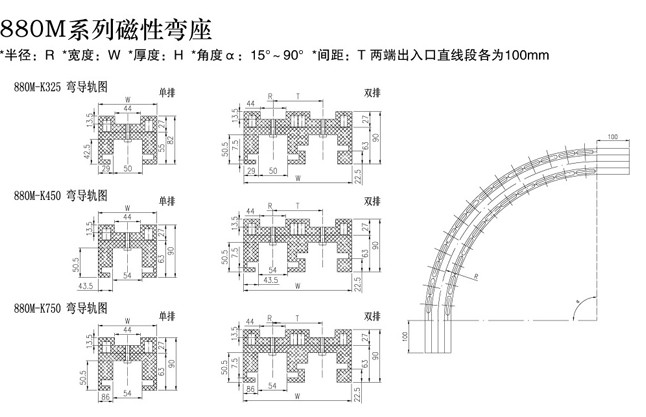

880M-K325 |
500 |
100 |
82 |
500 |
185 |
90 |
85 |
500 |
270 |
90 |
85 |
500 |
355 |
90 |
85 |
|
880M –K450 |
610 |
129 |
90 |
610 |
249 |
90 |
120 |
610 |
369 |
90 |
120 |
610 |
489 |
90 |
120 |
|
880M-K750 |
610 |
214 |
90 |
610 |
410 |
90 |
196 |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||

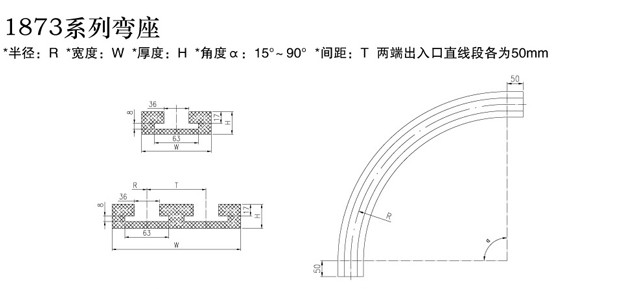

| 鏈板規格 | 單軌 | 雙軌 | |||||
| R | W | H | R | W | H | T | |
| 1873-K325 | 400 | 100 | 35 | 400 | 185 | 30 | 85 |
| 1873-K450 | 400 | 130 | 35 | 400 | 250 | 30 | 120 |
| 1873-K600 | 500 | 160 | 35 | 500 | 320 | 30 | 160 |
| 1873-K750 | 500 | 200 | 35 | 500 | 400 | 30 | 200 |
| 1873-K1000 | 500 | 260 | 35 | 500 | 520 | 30 | 260 |
| 1873-K1200 | 500 | 310 | 35 | 500 | 620 | 30 | 310 |

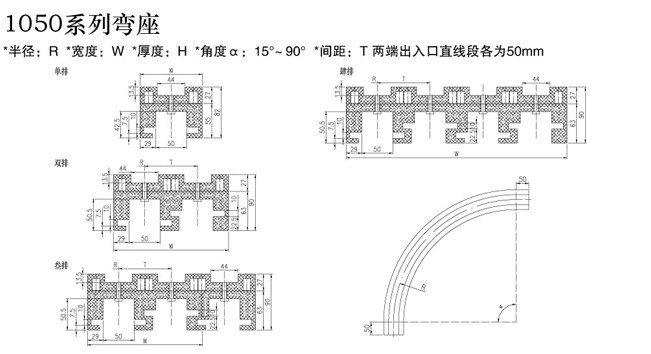

| 鏈板規格 | 單軌 | 雙軌 | 三軌 | 四軌 | |||||||||||
| R | W | H | R | W | H | T | R | W | H | T | R | W | H | T | |
| 1050-K325 | 500 | 100 | 82 | 500 | 185 | 90 | 85 | 500 | 270 | 90 | 85 | 500 | 355 | 90 | 85 |

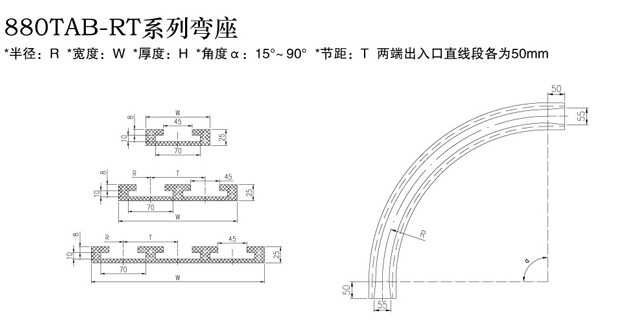

| 鏈板規格 | 單軌 | 雙軌 | 三軌 | ||||||||
| R | W | H | R | W | H | T | R | W | H | T | |
| 880TAB-RT-K325 | 200 | 100 | 25 | 200 | 185 | 25 | 85 | 200 | 270 | 25 | 85 |
| 880TAB-RT-K450 | 200 | 130 | 25 | 200 | 250 | 25 | 120 | 200 | 370 | 25 | 120 |

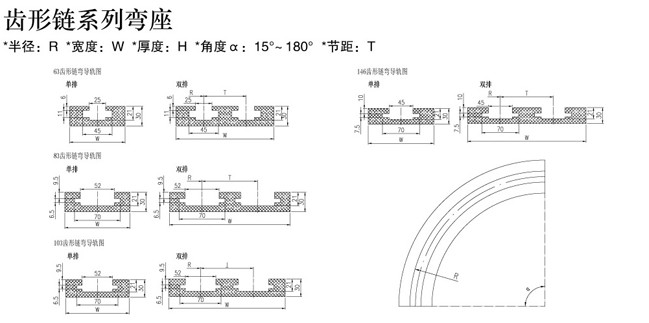

| 鏈板規格 | 單軌 | 雙軌 | |||||
| R | W | H | R | W | H | T | |
| 63 | 150 | 80 | 30 | 150 | 145 | 30 | 65 |
| 83 | 150 | 100 | 30 | 150 | 185 | 30 | 85 |
| 103 | 250 | 110 | 30 | 250 | 215 | 30 | 105 |
| 146 | 250 | 150 | 30 | 250 | 300 | 30 | 150 |
